Mixture Modelsยค
In this tutorial, we will look at Gaussian and Bernoulli mixture models. These mixture models are defined by mixing distribution (categorical) which is responsible for defining the distribution over the component distributions. We will train these models to generatively model MNIST data sets. We can train them with both expectation maximization (EM) or gradient descent based approaches.
import equinox as eqx
import jax
import matplotlib.pyplot as plt
import numpy as np
import optax
import tensorflow_datasets as tfds
from jax import numpy as jnp
from jax.scipy.special import expit, logit
from tqdm.notebook import tqdm
from distreqx.distributions import (
Bernoulli,
Categorical,
Independent,
MixtureSameFamily,
Normal,
)
N = 2_000
mnist_data = tfds.load("mnist")["train"]
mnist_data = tfds.as_numpy(mnist_data)
mnist_data = jnp.array(
[data["image"] for count, data in enumerate(mnist_data) if count < N]
)
new_data = mnist_data / 255.0
new_data.shape
class GMM(eqx.Module):
_model: MixtureSameFamily
def __init__(self, K, n_vars, rng_key):
mixing_coeffs = jax.random.uniform(rng_key, (K,), minval=100, maxval=200)
mixing_coeffs = mixing_coeffs / mixing_coeffs.sum()
initial_probs = jnp.full((K, n_vars), 1.0 / K)
self._model = MixtureSameFamily(
mixture_distribution=Categorical(probs=mixing_coeffs),
components_distribution=Independent(
Normal(initial_probs, 0.2 * jnp.ones_like(initial_probs))
),
)
@property
def mixing_coeffs(self):
return self._model.mixture_distribution.probs
@property
def probs(self):
return self._model.components_distribution.distribution.loc
@property
def model(self):
return self._model
def responsibilities(self, observations):
return jnp.nan_to_num(self._model.posterior_marginal(observations).probs)
def expected_log_likelihood(self, observations):
return jnp.nan_to_num(self._model.log_prob(observations))
def em_step(self, observations):
n_obs, _ = observations.shape
res = eqx.filter_vmap(self.responsibilities)(observations)
sum_res = jnp.sum(res, axis=0)
mus = jax.vmap(
lambda c, d: jax.vmap(lambda a, b: a * b, in_axes=(0, None))(c, d)
)(res, observations)
mus = jax.vmap(lambda a, b: a / b)(jnp.sum(mus, axis=0), sum_res)
# constant sigma
return sum_res / n_obs, mus
def plot(self, n_row, n_col):
if n_row * n_col != len(self.mixing_coeffs):
raise TypeError(
"The number of rows and columns does not match with "
"the number of component distribution."
)
fig, axes = plt.subplots(n_row, n_col)
for (coeff, mean), ax in zip(
zip(self.mixing_coeffs, self.probs), axes.flatten()
):
ax.imshow(mean.reshape((28, 28)), cmap="grey")
ax.set_title("%1.2f" % coeff)
ax.axis("off")
fig.tight_layout(pad=1.0)
plt.show()
Here we have some manual updates, this is in general not necessary, but can be helpful to have more direct control over the parameters (especially given the nature of modules to be very deep).
@eqx.filter_jit
def update_model_params(model, params):
model = eqx.tree_at(
lambda x: x._model.mixture_distribution._probs, model, params[0]
)
model = eqx.tree_at(
lambda x: x._model.components_distribution.distribution._loc, model, params[1]
)
return model
@eqx.filter_jit
def train_step(model, params, observations):
model = update_model_params(model, params)
log_likelihood = jnp.sum(
eqx.filter_vmap(model.expected_log_likelihood)(observations)
)
mixing_coeffs, probs = model.em_step(observations)
return (mixing_coeffs, probs), log_likelihood
data = new_data.reshape((N, 784))
data = ((data > 0.0).astype("int32") + 1e-8) * 0.99
key = jax.random.PRNGKey(0)
key, subkey = jax.random.split(key)
K = 20
model = GMM(K, 784, subkey)
params = (model.mixing_coeffs, model.probs)
batch_size = 2000
inner = N // batch_size
outer = 20
losses = []
for epoch in tqdm(range(outer)):
inner_loss = []
for batch in range(inner):
key, subkey = jax.random.split(key)
inds = jax.random.randint(
subkey, minval=0, maxval=len(data), shape=(batch_size,)
)
real_batch = data[inds]
key, subkey = jax.random.split(key)
params, loss = train_step(model, params, real_batch)
model = update_model_params(model, params)
inner_loss.append(loss)
losses.append(np.mean(inner_loss))

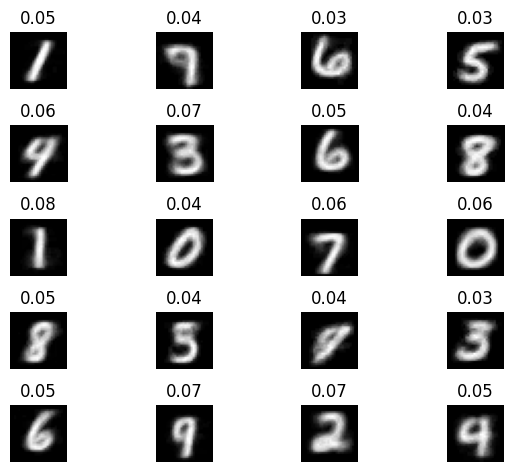

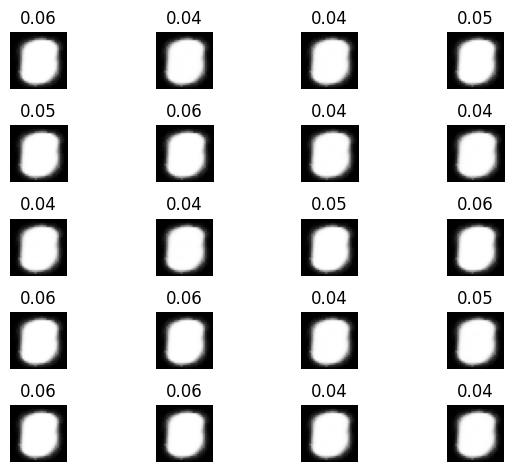

if epoch % 10 == 0:
model.plot(5, 4)

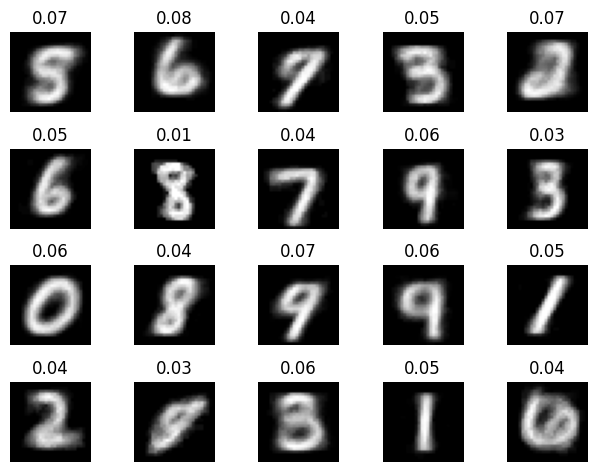

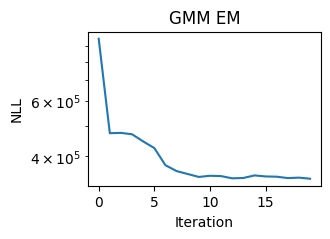

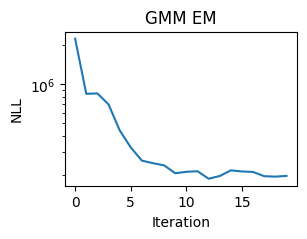

Now lets plot the EM loss and the final generated images for the GMM.
plt.plot(-np.array(losses))
plt.yscale("log")
plt.xlabel("Iteration")
plt.ylabel("NLL")
plt.title("GMM EM")
plt.show()

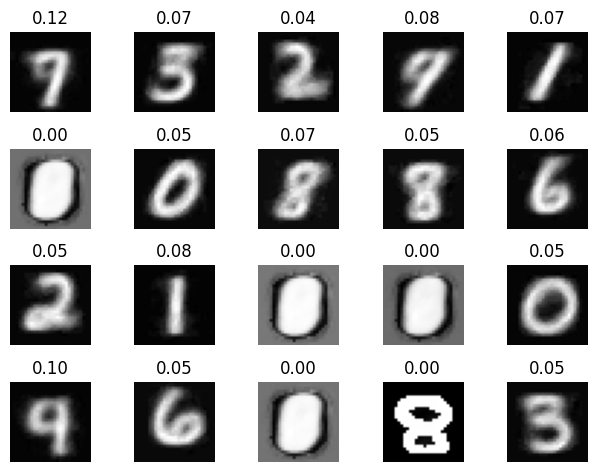

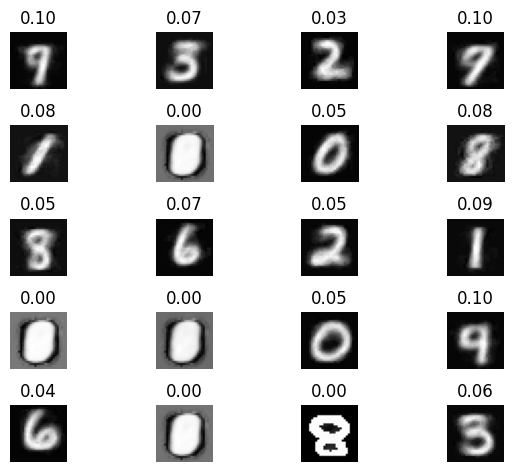

model.plot(4, 5)
Now we can repeat the process, but with SGD this time instead of EM. Notice the different failure mode? Difficulties in training mixtures models with SGD are well known (and there are many variants of EM to help overcome these failure modes).
@eqx.filter_jit
def update_model_params(model, params):
params = (jax.nn.softmax(params[0]), params[1])
model = eqx.tree_at(
lambda x: x._model.mixture_distribution._probs, model, params[0]
)
model = eqx.tree_at(
lambda x: x._model.components_distribution.distribution._loc, model, params[1]
)
return model
def loss_fn(model, params, inp):
model = update_model_params(model, params)
return -model.expected_log_likelihood(inp)
def vmap_loss(params, model, batch):
return jnp.mean(
eqx.filter_vmap(loss_fn, in_axes=(None, None, 0))(model, params, batch)
)
@eqx.filter_jit
def step(model, params, batch, opt_state):
loss, grads = eqx.filter_value_and_grad(vmap_loss)(params, model, batch)
update, opt_state = optimizer.update(grads, opt_state, params)
params = eqx.apply_updates(params, update)
return params, opt_state, loss
data = new_data.reshape((N, 784))
data = (data > 0.0).astype("int32")
key = jax.random.PRNGKey(0)
key, subkey = jax.random.split(key)
K = 20
model = GMM(K, 784, subkey)
params = (model.mixing_coeffs, model.probs)
optimizer = optax.adam(1e-1)
opt_state = optimizer.init((jax.nn.softmax(model.mixing_coeffs), model.probs))
batch_size = 1000
inner = N // batch_size
outer = 100
losses = []
for epoch in tqdm(range(outer)):
inner_loss = []
for batch in range(inner):
key, subkey = jax.random.split(key)
inds = jax.random.randint(
subkey, minval=0, maxval=len(data), shape=(batch_size,)
)
real_batch = data[inds]
key, subkey = jax.random.split(key)
params, opt_state, loss = step(model, params, real_batch, opt_state)
model = update_model_params(model, params)
inner_loss.append(loss)
losses.append(np.mean(inner_loss))

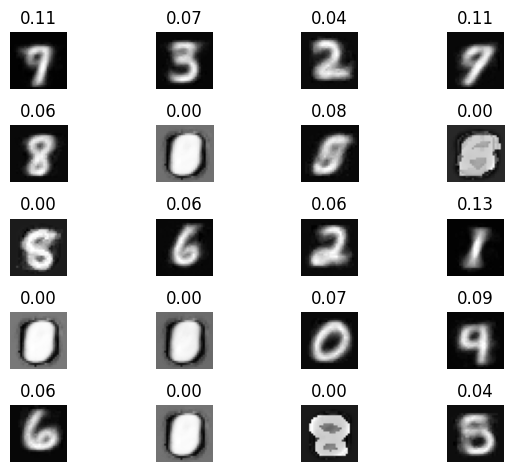

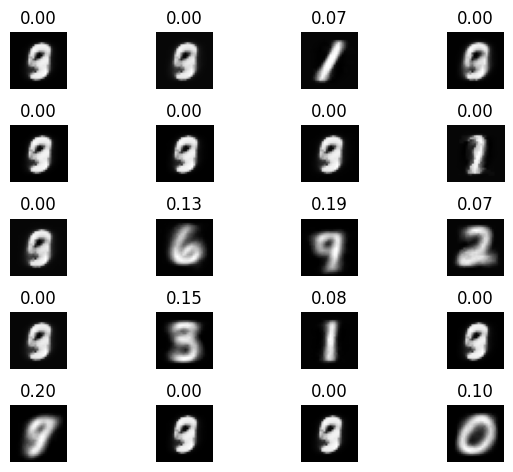

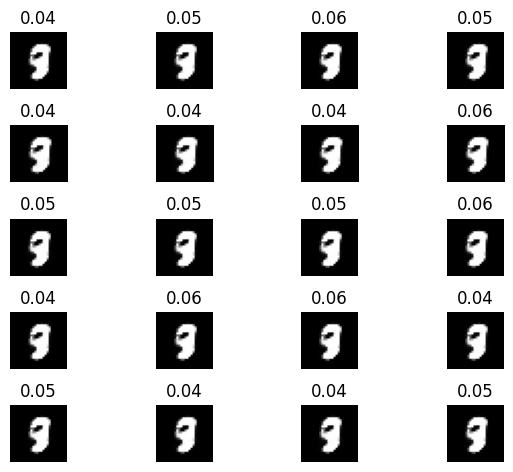

if epoch % 40 == 0:
model.plot(5, 4)

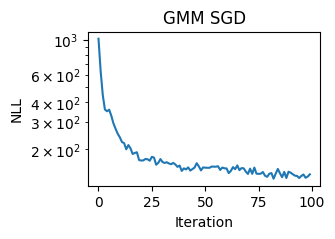

plt.plot(losses)
plt.yscale("log")
plt.xlabel("Iteration")
plt.ylabel("NLL")
plt.title("GMM SGD")
plt.show()

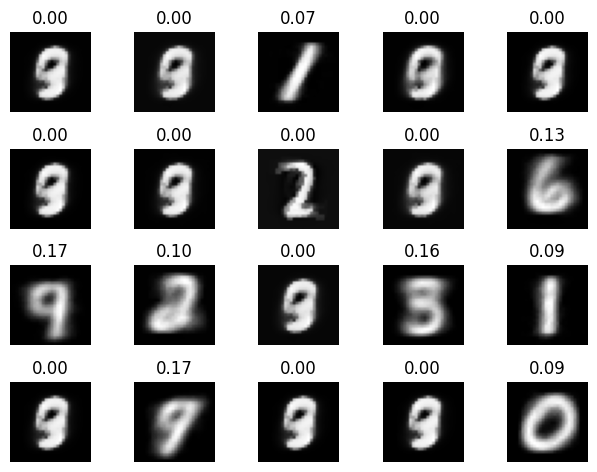

model.plot(4, 5)
Bernoulli Mixture Modelsยค
Now we can repeat the exact process as before, but with the component distribution being a Bernoulli. Once you've completed this tutorial, try it with a different distribution and see how it works!
class BMM(eqx.Module):
_model: MixtureSameFamily
def __init__(self, K, n_vars, rng_key):
mixing_coeffs = jax.random.uniform(rng_key, (K,), minval=100, maxval=200)
mixing_coeffs = mixing_coeffs / mixing_coeffs.sum()
initial_probs = jnp.full((K, n_vars), 1.0 / K)
self._model = MixtureSameFamily(
mixture_distribution=Categorical(probs=mixing_coeffs),
components_distribution=Independent(Bernoulli(probs=initial_probs)),
)
@property
def mixing_coeffs(self):
return self._model.mixture_distribution.probs
@property
def probs(self):
return self._model.components_distribution.distribution.probs
@property
def model(self):
return self._model
def responsibilities(self, observations):
return jnp.nan_to_num(self._model.posterior_marginal(observations).probs)
def expected_log_likelihood(self, observations):
return jnp.nan_to_num(self._model.log_prob(observations))
def em_step(self, observations):
n_obs, _ = observations.shape
def m_step_per_bernoulli(responsibility):
norm_const = responsibility.sum()
mu = jnp.sum(responsibility[:, None] * observations, axis=0) / norm_const
return jax.numpy.nan_to_num(mu), jax.numpy.nan_to_num(norm_const)
mus, ns = eqx.filter_vmap(m_step_per_bernoulli, in_axes=(1))(
eqx.filter_vmap(self.responsibilities)(observations)
)
return ns / n_obs, mus
def plot(self, n_row, n_col):
if n_row * n_col != len(self.mixing_coeffs):
raise TypeError(
"The number of rows and columns does not match with the "
"number of component distribution."
)
fig, axes = plt.subplots(n_row, n_col)
for (coeff, mean), ax in zip(
zip(self.mixing_coeffs, self.probs), axes.flatten()
):
ax.imshow(mean.reshape((28, 28)), cmap="grey")
ax.set_title("%1.2f" % coeff)
ax.axis("off")
fig.tight_layout(pad=1.0)
plt.show()
@eqx.filter_jit
def update_model_params(model, params):
model = eqx.tree_at(
lambda x: x._model.mixture_distribution._probs, model, params[0]
)
model = eqx.tree_at(
lambda x: x._model.components_distribution.distribution._probs, model, params[1]
)
return model
@eqx.filter_jit
def train_step(model, params, observations):
model = update_model_params(model, params)
log_likelihood = jnp.sum(
eqx.filter_vmap(model.expected_log_likelihood)(observations)
)
mixing_coeffs, probs = model.em_step(observations)
return (mixing_coeffs, probs), log_likelihood
data = new_data.reshape((N, 784))
data = ((data > 0.0).astype("int32") + 1e-8) * 0.99
key = jax.random.PRNGKey(0)
key, subkey = jax.random.split(key)
K = 20
model = BMM(K, 784, subkey)
params = (model.mixing_coeffs, model.probs)
batch_size = 2000
inner = N // batch_size
outer = 20
losses = []
for epoch in tqdm(range(outer)):
inner_loss = []
for batch in range(inner):
key, subkey = jax.random.split(key)
inds = jax.random.randint(
subkey, minval=0, maxval=len(data), shape=(batch_size,)
)
real_batch = data[inds]
key, subkey = jax.random.split(key)
params, loss = train_step(model, params, real_batch)
model = update_model_params(model, params)
inner_loss.append(loss)
losses.append(np.mean(inner_loss))

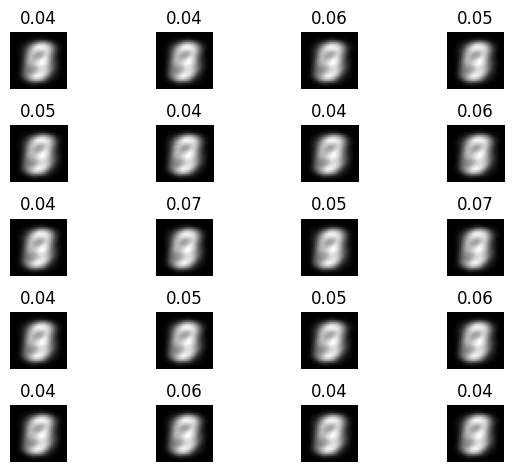

if epoch % 10 == 0:
model.plot(5, 4)
plt.plot(-np.array(losses))
plt.yscale("log")
plt.xlabel("Iteration")
plt.ylabel("NLL")
plt.title("GMM EM")
plt.show()

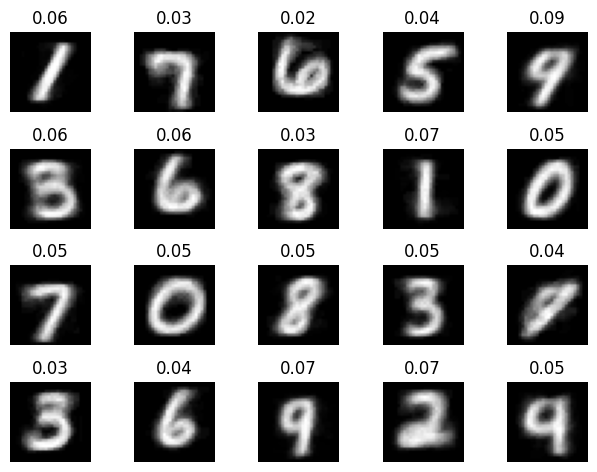

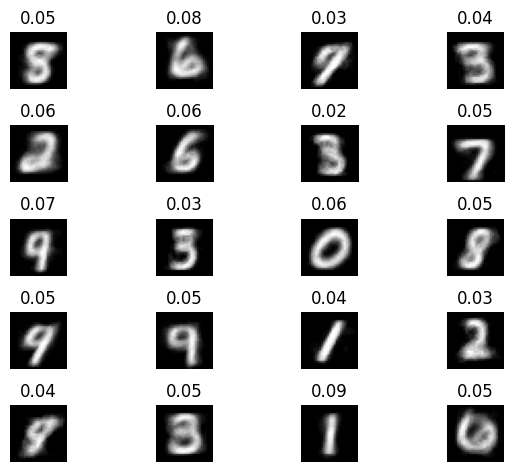

model.plot(4, 5)
@eqx.filter_jit
def update_model_params(model, params):
params = (jax.nn.softmax(params[0]), expit(params[1]))
model = eqx.tree_at(
lambda x: x._model.mixture_distribution._probs, model, params[0]
)
model = eqx.tree_at(
lambda x: x._model.components_distribution.distribution._probs, model, params[1]
)
return model
@eqx.filter_jit
def step(model, params, batch, opt_state):
loss, grads = eqx.filter_value_and_grad(vmap_loss)(params, model, batch)
update, opt_state = optimizer.update(grads, opt_state, params)
params = eqx.apply_updates(params, update)
return params, opt_state, loss
data = new_data.reshape((N, 784))
data = (data > 0.0).astype("int32")
key = jax.random.PRNGKey(0)
key, subkey = jax.random.split(key)
K = 20
model = BMM(K, 784, subkey)
params = (model.mixing_coeffs, model.probs)
optimizer = optax.adam(1e-1)
opt_state = optimizer.init((jax.nn.softmax(model.mixing_coeffs), logit(model.probs)))
batch_size = 1000
inner = N // batch_size
outer = 100
losses = []
for epoch in tqdm(range(outer)):
inner_loss = []
for batch in range(inner):
key, subkey = jax.random.split(key)
inds = jax.random.randint(
subkey, minval=0, maxval=len(data), shape=(batch_size,)
)
real_batch = data[inds]
key, subkey = jax.random.split(key)
params, opt_state, loss = step(model, params, real_batch, opt_state)
model = update_model_params(model, params)
inner_loss.append(loss)
losses.append(np.mean(inner_loss))
if epoch % 40 == 0:
model.plot(5, 4)

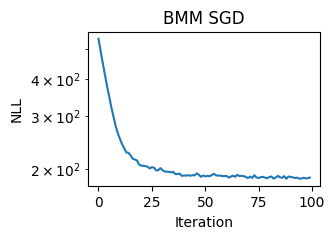

plt.plot(losses)
plt.yscale("log")
plt.xlabel("Iteration")
plt.ylabel("NLL")
plt.title("BMM SGD")
plt.show()

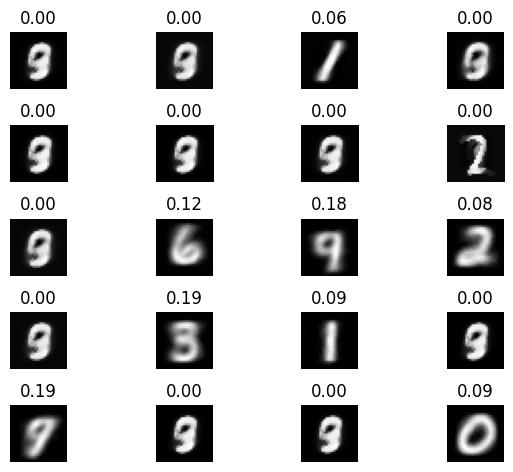

model.plot(4, 5)
