Piecewise Deterministic Markov Processes and Jump Diffusion Equations

import diffrax as dfx
import jax
import jax.numpy as jnp
import jumpax as jx
import matplotlib.pyplot as plt
import numpy as np

def plot_solution(sol):
    # First, get the jump points
    mask = jnp.isfinite(sol.ts)
    jump_ts = np.array(sol.ts[mask], dtype=float)
    jump_us = np.array(sol.us[mask, 0], dtype=float)

    plt.figure()

    dense_ts_all = sol.dense["dense_ts"]
    dense_us_all = sol.dense["dense_us"]

    full_ts = []
    full_us = []

    # Process each segment between jumps
    for i in range(dense_ts_all.shape[0]):
        segment_ts = dense_ts_all[i]
        segment_us = dense_us_all[i].squeeze()

        # Filter out inf values
        valid_mask = np.isfinite(segment_ts)
        if np.any(valid_mask):
            t_seg = np.array(segment_ts[valid_mask], dtype=float)
            u_seg = segment_us[valid_mask]
            u_seg = np.array(u_seg, dtype=float)

            full_ts.extend(t_seg)
            full_us.extend(u_seg)

            if i < len(jump_ts) - 2:
                jump_time = t_seg[-1]
                post_jump_value = jump_us[i + 1]
                full_ts.append(jump_time)
                full_us.append(post_jump_value)

    if full_ts:
        plt.plot(full_ts, full_us, "b-", linewidth=1.0, label="Trajectory")

    plt.xlabel("Time")
    plt.ylabel("State")
    plt.legend(loc="best")
    plt.grid(True, alpha=0.3)
    plt.show()

    return jump_ts, jump_us

t0, t1 = 0.0, 10.0
u0 = jnp.array([0.2])
save_dense = jx.Save(states=True, reaction_counts=True, dense=True)


def ode_fn(t, y, args):
    # Exponential growth between jumps
    return y


def halving_affect(t, u, args):
    halved = u.at[0].set(0.5 * u[0])
    return jnp.stack([halved], axis=0)


halve_affect = jx.StatelessAffect(halving_affect)

Constant-Rate Jump

rate_const = lambda t, u, args: jnp.array([2.0])
const_jump = jx.ConstantRateJump(rate_const, halve_affect)

hybrid_solver = jx.HybridSSA(ode_fn, solver=dfx.Tsit5(), dt0=1e-2, max_steps=1000)
sol_const = jx.solve(
    const_jump,
    hybrid_solver,
    save_dense,
    u0,
    t0=t0,
    t1=t1,
    args=None,
    key=jax.random.key(0),
)

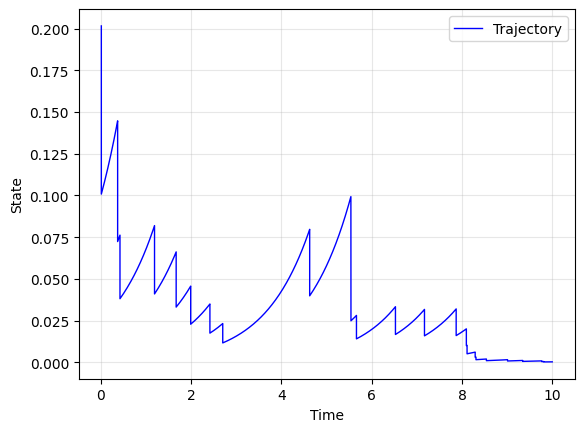

plot_solution(sol_const)
print("Reaction counts:", sol_const.counts)
print("Steps taken:", sol_const.stats["num_steps"].item())

Reaction counts: [24]
Steps taken: 25

Variable-Rate Jump

Now the rate equals the current state value. The rate evolves continuously, so we switch to HazardSSA, which integrates the hazard function alongside the ODE using Diffrax.

rate_var = lambda t, u, args: jnp.array([u[0]])
var_jump = jx.VariableRateJump(rate_var, halve_affect)

hazard_solver = jx.HazardSSA(ode_fn, solver=dfx.Tsit5(), dt0=1e-2, max_steps=1000)
sol_var = jx.solve(
    var_jump,
    hazard_solver,
    save_dense,
    u0,
    t0=t0,
    t1=t1,
    args=None,
    key=jax.random.key(0),
)

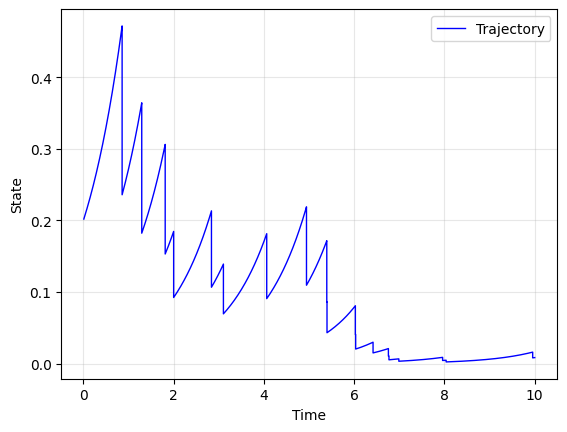

plot_solution(sol_var)
print("Reaction counts:", sol_var.counts)
print("Steps taken:", sol_var.stats["num_steps"].item())

Reaction counts: [13]
Steps taken: 14

Multiple Jumps

We mix the constant and variable channels by stacking their rates and affects into a single VariableRateJump. Each jump channel halves the state.

def rate_multi(t, u, args):
    return jnp.array([2.0, u[0]])


def affect_multi(t, u, args):
    halved = u.at[0].set(0.5 * u[0])
    return jnp.stack([halved, halved], axis=0)


multi_jump = jx.VariableRateJump(rate_multi, jx.StatelessAffect(affect_multi))

hazard_multi_solver = jx.HazardSSA(ode_fn, solver=dfx.Tsit5(), dt0=1e-2, max_steps=1000)
sol_multi = jx.solve(
    multi_jump,
    hazard_multi_solver,
    save_dense,
    u0,
    t0=t0,
    t1=t1,
    args=None,
    key=jax.random.key(4),
)

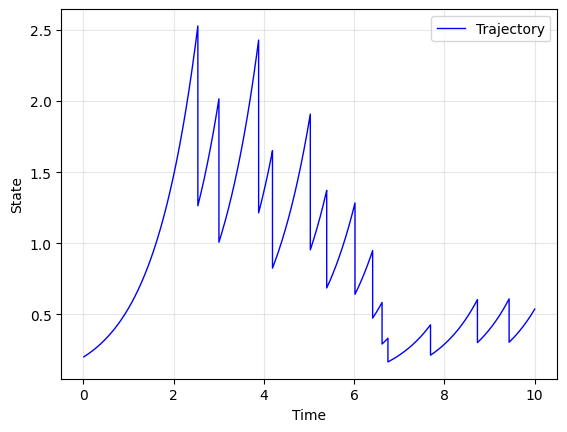

plot_solution(sol_multi)
print("Reaction counts:", sol_multi.counts)
print("Steps taken:", sol_multi.stats["num_steps"].item())

Reaction counts: [16  3]
Steps taken: 20

Jump Diffusion

Finally we add multiplicative noise.

def drift(t, y, args):
    return y


def diffusion(t, y, args):
    return y[:, None]


hazard_sde = jx.HazardSSA(
    drift, solver=dfx.EulerHeun(), dt0=1e-3, diffusion_fn=diffusion, max_steps=1000
)

key = jax.random.key(42)
sol_diff = jx.solve(
    multi_jump,
    hazard_sde,
    save_dense,
    u0,
    t0=t0,
    t1=t1,
    args=None,
    key=key,
)

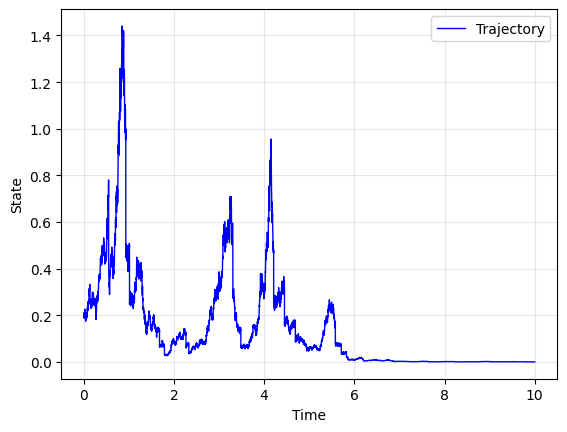

plot_solution(sol_diff)
print("Reaction counts:", sol_diff.counts)
print("Steps taken:", sol_diff.stats["num_steps"].item())

Reaction counts: [26  1]
Steps taken: 28
